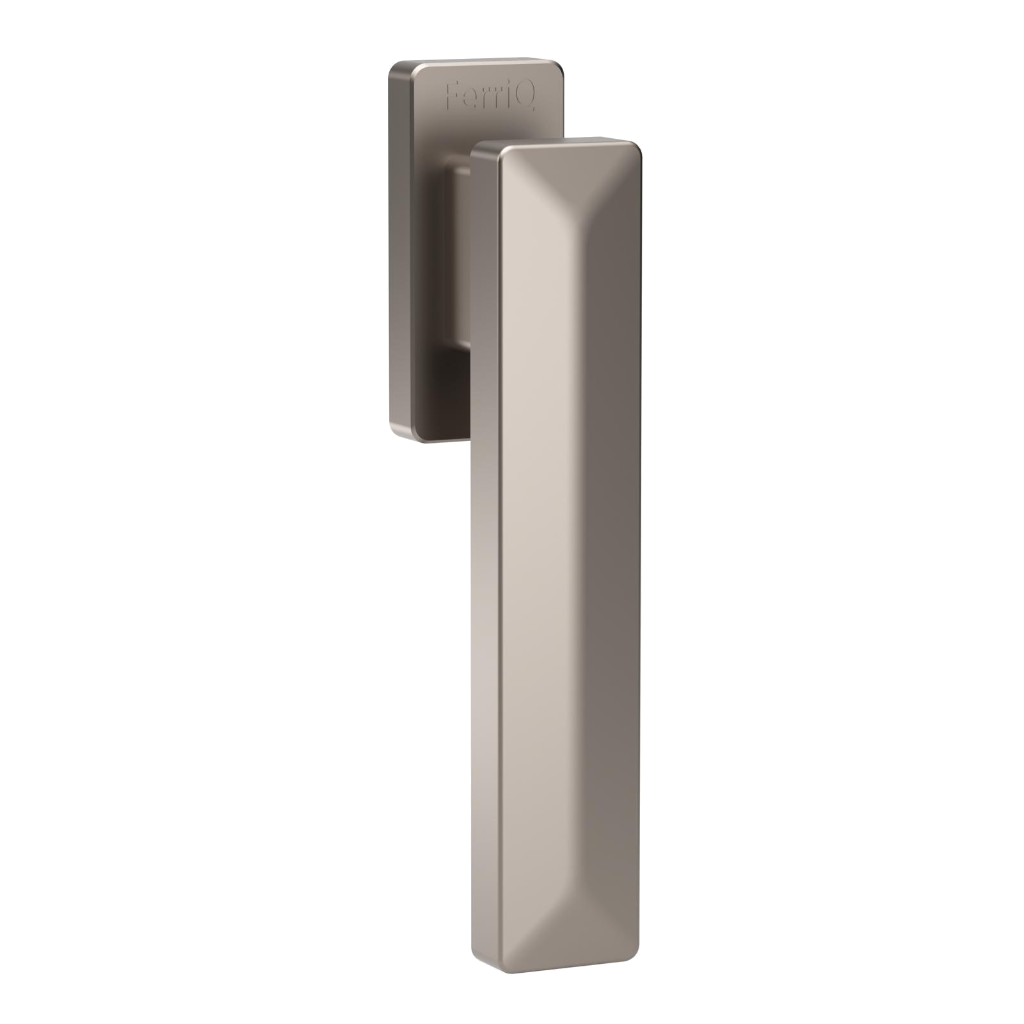

ENGINEERED PRECISION
Designed for accurate function and clean architectural lines.
DIMENSIONS
SPECIFICATIONS
| Material | High grade aluminum |
|---|---|
| Length | 120 mm |
| Width | 18 mm |
| Projection | 61 mm |
| Base Plate | 24 × 61 mm |
| Mounting | Concealed screws |
| Screw Type | M4 |
| Application | Windows, doors, facade systems |
| Max. Door/Window Weight | 200 kg |
| Operating Temperature | −40°C to +80°C |
| Corrosion Resistance | EN 1670 Grade 5 |
BASE PLATE
Concealed screw mounting for a clean and seamless look.
MOUNTING DETAILS
Concealed screws ensure secure installation and a minimalist appearance.
Recommended screw: M4 × 45 mm (not included)
COMPATIBILITY
- Windows
- Doors
- Facade systems
STANDARD COMPLIANCE
- EN 1670Corrosion resistance
- EN 1303Durability
- EN 1906Category 3
For custom solutions or special requirements, please contact our technical team.
CONTACT US →TESTED QUALITY
Extensively tested for strength, cycles and surface integrity.
BUILT TO LAST
Premium materials and advanced engineering for lasting use.
